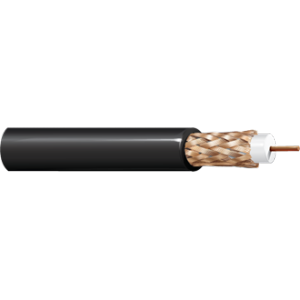

Belden 9914 10 AWG 50 Ohm RG-8/U Coax Cable BC Shielded PE/PVC 600V Black

This RG-8/U wireless transmission low noise coaxial cable is a 50-ohm, 600V-rated cable designed for point-to-point and point-to-multipoint wireless antenna communication and wireless microphone applications. It features a 10 AWG solid bare copper conductor, white polyethylene (PE) foam insulation, Duobond® II tape shield, tinned copper braid shield (95% coverage), and a black polyvinyl chloride (PVC) jacket for reliable signal protection in indoor environments.

Applications

9914 is designed for point-to-point and point-to-multipoint wireless antenna communication, wireless microphones, two-way radios, amateur (Ham) radio, low power FM, GPS, RFID (Radio Frequency Identification).

Construction

• 10 AWG solid bare copper conductor
• Polyethylene (PE) foam insulation, white (gas injected foam)
• Duobond® II tri-laminate (alum+poly+alum) (100% coverage)
• Tinned copper braid shield (95% coverage)
• Black Polyvinyl Chloride (PVC) jacket

Standards and Compliance

• Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - black only, when supported by messenger wire
• Sustainability: CA Prop 65
• Flammability / Reaction to Fire: UL 1685 FT4 Loading
• CPR Compliance: CPR Euro class: Eca
• NEC / UL Compliance: CMG
• AWM Compliance: AWM 1354
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 9914 Technical Data Sheet.
