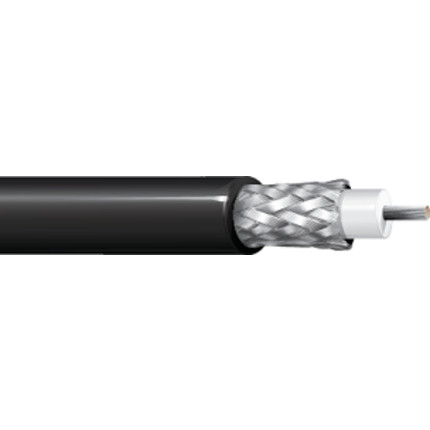

Belden 8240 20 AWG 50 Ohm RG-58 Coax Cable BC Shielded PE/PVC 300V Black

This RG-58 wireless transmission coaxial cable is a 50-ohm, 300V-rated cable designed for point-to-point and point-to-multipoint wireless antenna communication and wireless microphone applications. It features a 20 AWG solid bare copper conductor, polyethylene (PE) insulation, tinned copper braid shield (95% coverage), and a black polyvinyl chloride (PVC) jacket for reliable signal protection in indoor and outdoor environments.

Applications

8240 is designed for point-to-point and point-to-multipoint wireless antenna communication, wireless microphones, two-way radios, amateur (Ham) radio, low power FM, GPS, RFID (Radio Frequency Identification).

Construction

• 20 AWG solid bare copper conductor
• Polyethylene (PE) insulation, white
• Tinned copper braid shield (95% coverage)
• Black Polyvinyl Chloride (PVC) jacket

Standards and Compliance

• Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
• Flammability / Reaction to Fire: UL 1581
• CPR Compliance: CPR Euro class: Eca; CPR UKCA Calss: Eca
• NEC / UL Compliance: CMX
• CEC / C(UL) Compliance: CMX
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• AWM Compliance: AWM 1354
• APAC Compliance: China RoHS II (GB/T 26572-2011)
• Plenum Number: 88240, 82240

Click here for the Belden 8240 Technical Data Sheet.
