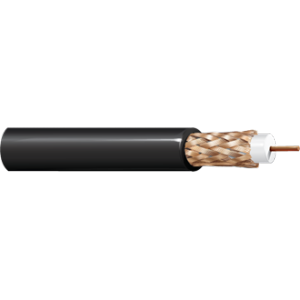

Belden 8261 18 AWG 75 Ohm RG-11 Analog Video Coax Cable TC Shielded PE/PVC 3700V Black

This RG-11 analog video coaxial cable is a 75-ohm, 3700V-rated cable designed for analog video applications. It features a 18 AWG stranded tinned copper conductor, white polyethylene (PE) insulation, bare copper braid shield (95% coverage), and a black polyvinyl chloride (PVC) jacket for reliable signal protection in indoor and outdoor environments.

Applications

8261 is designed for analog video.

Construction

• 18 AWG stranded (7x26) tinned copper conductor
• Polyethylene (PE) insulation, white
• Bare copper braid shield (95% coverage)
• Black Polyvinyl Chloride (PVC) non-contaminating jacket

Standards and Compliance

• Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
• Flammability / Reaction to Fire: IEC 60332-1-2
• CPR Compliance: CPR Euro class: Eca
• CEC / C(UL) Compliance: CXC
• European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 8261 Technical Data Sheet.
