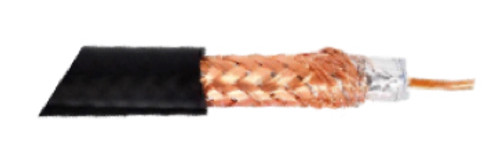

RG59 PLEN STR FEP 95%BC

SKU:
110961
$0.00/ft
Minimum Purchase:
1 ft
$0.00/ft

Description

RG-59/U is a specific type of coaxial cable, often used for low-power video and RF signal connections. The cable has a characteristic impedance of 75 ohms. The 75 ohm impedance matches a dipole antenna in free space. RG(for radio guide) was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military's Joint Electronics Type Designation System. The suffix /U means for general utility use. The number 59 was assigned sequentially.



RG-59 is often used at baseband video frequencies, such as composite video. It may also be used for broadcast frequencies, but its high-frequency losses are too high to allow its use over long distances; in these applications,RG-6 or RG-11 is used instead. In cases where the transmission distance is too long for these media, such options as UTP (unshielded twisted pair) or fiber optic can be used.

RG-59 coaxial cable is commonly packed with consumer equipment, such as VCRs or digital cable/satellite receivers. Manufacturers tend to include only RG-59 cables because it costs less than RG-6 does. However, given the short lengths provided (usually 4–6 ft or 1.2–1.8 m), this is generally sufficient for its typical use.

Specifications

Capacitance:
17.3
Conductor type:
#22AWG 7STR BARE CU
Insulation:
FOAMED FEP
Jacket type:
PLENUM
NEC:
CMP
Ohms:
75
Outside Diameter:
0.193
Putup:
REEL
Shield 1 type:
BARE CU 95% COVERAGE
Temperature:
75 DEGREES CENTIGRADE
Weight per Foot:
0.03300

Manufacturer Equivalents

Omni Cable item:
E85902
