Belden 9544 24 AWG, 30 stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil shield, 24 AWG stranded tinned copper drain wire, PVC jacket

Belden 9544 24 AWG, 30 stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil shield, 24 AWG stranded tinned copper drain wire, PVC jacket

Belden

SKU:: 9544

$16.89/ft

Belden 9544 24 AWG, 30 stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil shield, 24 AWG stranded tinned copper drain wire, PVC jacket

Minimum Purchase:: 1 ft

$16.89/ft

Description

Belden 9544 24 AWG, 30 stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoilï¿½ shield, 24 AWG stranded tinned copper drain wire, PVC jacket.

Click here for Belden 9544 Technical Data Sheet.

Specifications

Brand:

Belden

AWG:

Capacitance:

Color:

Gray

Number of Conductors:

Conductor type:

STRANDED CONDUCTOR, TINNED COPPER

Construction:

OVERALL SHIELD & DRAIN

Insulation Thickness (inches):

0.010

Insulation:

SRPVC-SEMI-RIGID PVC

Jacket Thickness (inches):

0.040

Jacket type:

PVC-POLYVINYL CHLORIDE

Manufacturer:

Belden

Manufacturers item number:

9544 0601000

NEC:

NEC CMG

Outside Diameter:

0.380

Plenum/Riser:

GENERAL PURPOSE

RoHS Compliant:

YES

Shielded/Unshielded:

YES

Shield 1 type:

FOIL SHIELDED - ALUM/MYLAR

Shield 2 type:

100%

Number of Strands:

7x32

Temperature:

80 DEGREES CENTIGRADE (176 F)

UL:

UL STYLE, 2464

Voltage rating:

300 VOLTS AC

Weight per Foot:

0.10200

Manufacturer Equivalents

Alpha Wire item:

6310

Anixter item:

B9544

Belden item:

9544 0601000

General Cable item:

C0749A

Wirexpress item:

B9544

Belden 9544 24 AWG, 30 stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil shield, 24 AWG stranded tinned copper drain wire, PVC jacket

Belden

Description

Specifications

Manufacturer Equivalents

Related Products

Belden 9525 24 AWG, 25-pair of stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, twisted pairs, overall Beldfoil shield, 24 AWG stranded TC drain Wire (continued), PVC jacket

Belden 9608 Multi-conductor - computer cable for EIA RS-232 applications, 24 AWG, 3 stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil shield + tinned copper braid shield (65% coverage), PVC jacket

Belden 9612 Computer cable, 24 AWG, 7 stranded (7x32) tinned copper conductors, S-R PVC insulation, overall Beldfoil + TC braid shield (+65% coverage), PVC jacket

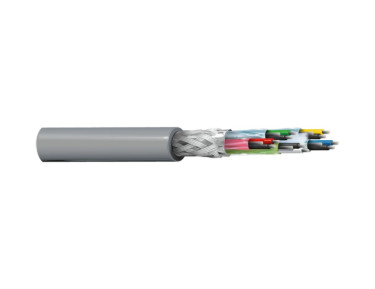

Belden 8165 24 AWG, 5-pair of stranded (7x32) tinned copper conductors, Datalene insulation, twisted pairs individually Beldfoil shielded + overall 100% Beldfoil + TC braid shield (65% coverage), drain wire, PVC jacket
