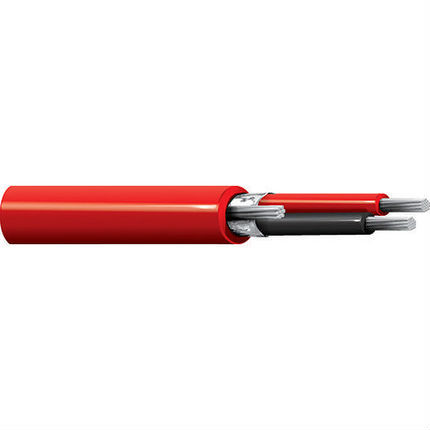

Belden 89740 18/1P High Temperature Electronic Cable TC NS CMP FEP/FEP 300V Red

This 18 AWG 1 pair non-shielded high temperature electronic cable is designed for audio, control, and instrumentation applications. It features stranded tinned copper conductors with FEP insulation and a red FEP jacket for indoor plenum use.

Applications

89740 is designed for extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring.

Construction

• 18 AWG stranded (19x30) tinned copper conductors
• 1 pair: black, red
• Fluorinated Ethylene Propylene (FEP) insulation
• Red Fluorinated Ethylene Propylene (FEP) outer jacket

Standards and Compliance

• Environmental Suitability: Indoor - Plenum, Indoor
• Sustainability: CA Prop 65
• Flammability / Fire Resistance: NFPA 262 (UL 910), FT6, IEC 60332-1-2
• NEC / UL Compliance: Article 725, Article 800
• CEC / C(UL) Compliance: CMP
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• APAC Compliance: China RoHS II (GB/T 26572-2011)
• Non-Plenum Number: 9740

Click here for the Belden 89740 Technical Data Sheet .
