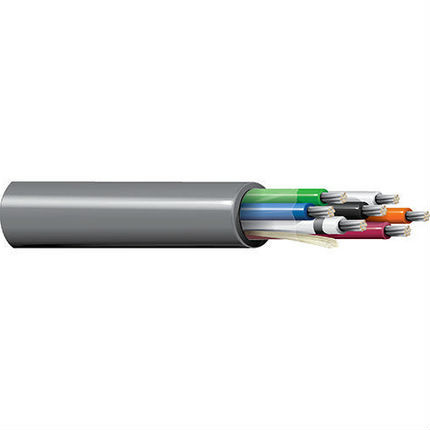

Belden 8622 16/12C Audio Control and Instrumentation Cable TC NS PVC/PVC 600V Chrome

This 16 AWG twelve conductor non-shielded electronic cable is designed for audio, control, and instrumentation applications. It features stranded tinned copper conductors with PVC insulation and a chrome PVC jacket.

Applications

8622 is designed for analog signals & control (up to 600V); line level audio; voice communications; panel wiring.

Construction

• 16 AWG stranded (19x29) tinned copper conductors
• 12 conductors: ICEA Method 1, Table E-1
• Polyvinyl Chloride (PVC) insulation
• Chrome Polyvinyl Chloride (PVC) outer jacket

Standards and Compliance

• Environmental Suitability: Indoor
• Flammability / Fire Resistance: UL 1581 (VW-1), IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 8622 Technical Data Sheet .
