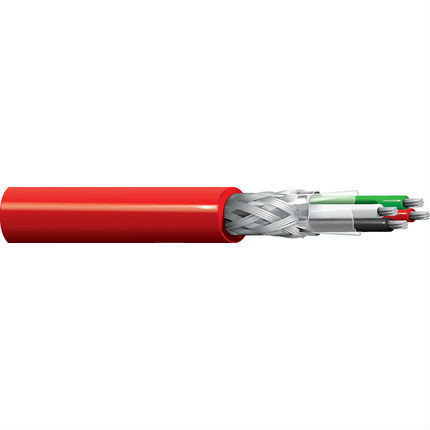

Belden 83656 18/6C Audio Control and Instrumentation Cable TC Shielded CMP FEP/FEP 300V Red

This 18 AWG six conductor shielded high temperature electronic cable is designed for audio, control, and instrumentation applications. It features stranded tinned copper conductors with FEP insulation, an overall Beldfoil® shield and a tinned copper braid (85% coverage) for EMI protection, and a red FEP jacket for indoor plenum and outside use.

Applications

83656 is designed for extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring.

Construction

• 18 AWG stranded (19x30) tinned copper conductors
• 6 conductors: black, white, red, green, orange, blue
• Fluorinated Ethylene Propylene (FEP) insulation
• Overall Beldfoil® aluminum-polyester foil (100% coverage)
• Tinned copper braid (85% coverage)
• Red Fluorinated Ethylene Propylene (FEP) outer jacket

Standards and Compliance

• Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
• Sustainability: CA Prop 65
• Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
• NEC / UL Compliance: Article 800, CMP
• CEC / C(UL) Compliance: CMP
• CPR Compliance: CPR Euroclass: Eca
• European Directive Compliance: EU CE Mark, REACH, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 83656 Technical Data Sheet .
