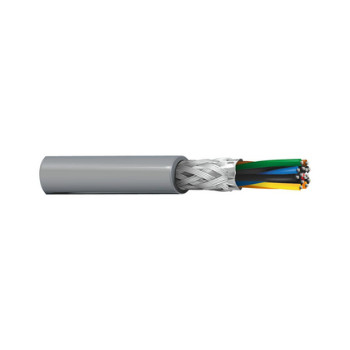

Belden 8307 22/7P RS-232 Low Cap Cable TC Shielded CMG SR-PVC/PVC 300V Chrome

This 22 AWG multi-pair cable supports EIA RS-232 data transmission and computer communication applications. It features seven twisted pairs of stranded tinned copper conductors insulated with semi-rigid PVC (SR-PVC) for stable electrical performance. The cable is shielded with an overall Beldfoil® shield (100% coverage) and a 65% coverage tinned copper braid to reduce susceptibility to external electromagnetic interference. The overall construction is enclosed in a PVC jacket and is rated for CMG installations.

Applications

8307 is designed for RS-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring.

Construction

• 22 AWG stranded (7x30) tinned copper conductors
• 7 twisted pairs: black & red, black & white, black & green, black & blue, black & yellow, black & brown, black & orange
• Semi-rigid polyvinyl chloride (SR-PVC) insulation
• Overall Beldfoil® shield (100% coverage)
• Tinned copper braid shield (65% coverage)
• Chrome Polyvinyl Chloride (PVC) outer jacket

Standards and Compliance

• Environmental Suitability: Indoor
• Flammability / Fire Resistance: UL 1685 FT4 Loading, FT4
• CPR Compliance: CPR Euroclass: Eca
• NEC / UL Compliance: Article 800, CMG
• AWM Compliance: AWM 2464
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)
