Name: Belden 8232 Coax - RG-59/U Type RG-59/U Type Triax Black
Brand: Belden
SKU: 8232
Availability: OutOfStock

Description

Belden 8232 Coax - RG-59/U Type RG-59/U Type Triax Black

Specifications

Brand:

Belden

Coax Construction:

TRIAXIAL

Coax Type:

RG 59

Conductor Diameter (inches):

0.032

Conductor type:

1/0.032/20/BC, 20 AWG Solid BC, SOLID CONDUCTOR, BARE COPPER

Insulation:

FOAMED HDPE-HI-DENSITY POLYETHYLENE, FHDPE/0.145

Jacket type:

PE/BLK/0.315, PE-POLYETHYLENE

Manufacturer:

Belden

Manufacturers item number:

8232 0102000

NEC:

NOT LISTED BY UL UNDER NEC

Ohms:

Outside Diameter:

0.315

Outdoor Grade:

YES IS OUTDOOR GRADE MATERIAL

Plenum/Riser:

GENERAL PURPOSE (CM, CMG, CMX)

RG Type:

RG59

RoHS Compliant:

YES

Shield 1 type:

DOUBLE BRAID SHIELD

Shield 2 type:

2-95% BC Braids

Weight per Foot:

0.06000

Manufacturer Equivalents

Anixter item:

B8232

Belden item:

8232 0102000

Wirexpress item:

B8232

Belden 88232 Coax - RG-59/U Type 20 AWG Triax FFEP RG59/U Type Black

20 AWG solid .032" bare copper conductor, plenum, foam FEP insulation, bare copper braid shields (95% coverage), FEP jacket.

Belden

SKU: 8214

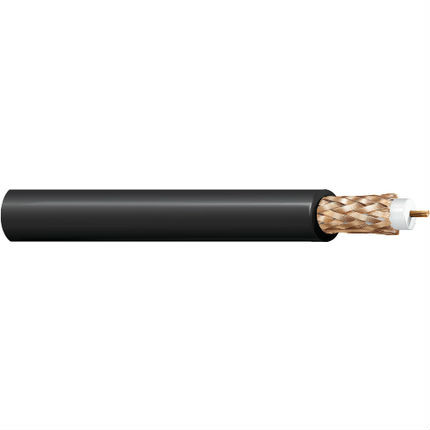

Belden 8214 Coax - RG-8/U Type RG-8/U Type Coax Black

Belden 8214 RG-8/U type, 11 AWG stranded (7x19) .108" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Belden

SKU: 9914

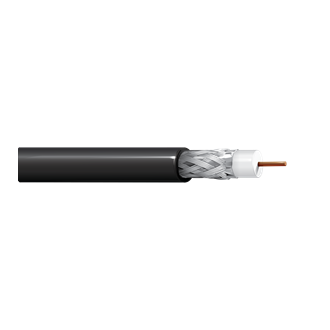

Belden 9914 Coax - RG-8/U Type RG-8/U Type Coax Black
