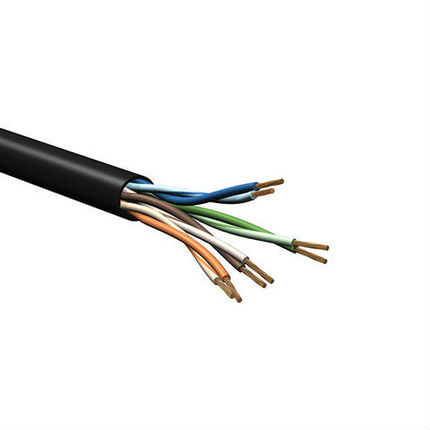

Belden 7939A 24/4P Cat5e DataTuff Cable F/UTP CMR PVC Black 1000 ft Reel

This DataTuff® cable is a high-performance 200 MHz Category 5e foiled with unshielded twisted pair (F/UTP) cable, featuring four bonded pairs of 24 AWG stranded bare copper conductors insulated with Polyolefin (PO), overall Beldfoil® shield with a drain, and a PVC outer jacket.

As a DataTuff cable, it is specifically engineered for maximum reliability in harsh industrial environments, offering superior resistance to sunlight and oil. Its dual rating of CMR (Riser) and CMX-Outdoor makes it suitable for both vertical indoor runs and exposed outdoor installations.

Belden supplies this cable on a standard crate pay-off reel, meaning it’s wound on a rigid spool that you place on a reel stand or jacks so the cable can rotate and feed out smoothly and evenly as you pull it into place.

Applications

7939A is designed for outdoor, harsh environments, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction

• 24 AWG stranded (7x32) bare copper conductors
• 4 bonded twisted pairs: white/blue stripe & blue, white/orange stripe & orange, white/green stripe & green, white/brown stripe & brown
• Polyolefin (PO) insulation
• Overall Beldfoil® shield, 100% coverage
• 24 AWG (7x32) tinned copper drain wire
• Black polyvinyl chloride (PVC) outer jacket

Standards and Compliance

• Environmental Suitability: Riser, Indoor/Outdoor, Sunlight Resistance, Oil Resistance
• Flammability / Fire Resistance: UL 1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca
• NEC / UL Compliance: Article 800, CMR, CMX-Outdoor
• CEC / C(UL) Compliance: CMG, CMX-Outdoor
• ICEA Compliance: S-90-661
• NEMA Compliance: NEMA WC-63.1
• Data Category: Category 5e
• TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
• ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 7939A Technical Data Sheet .
