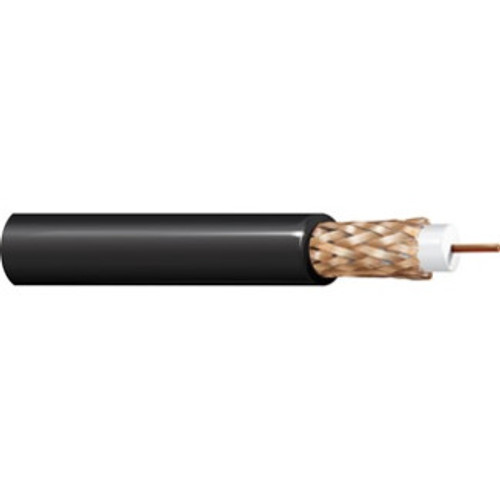

Belden 502PTZ Composite - For PTZ Cameras: CCTV + Control + Power 1 RG59 + 2C18 SH + 2C18

Belden 502PTZ Composite - For PTZ Cameras: CCTV + Control + Power 1 RG59 + 2C18 SH + 2C18

Belden

SKU:: 502PTZ

$0.00/ft

Belden 502PTZ Composite - For PTZ Cameras: CCTV + Control + Power 1 RG59 + 2C18 SH + 2C18

Minimum Purchase:: 1000 ft

$0.00/ft

Description

Belden 502PTZ Composite - For PTZ Cameras: CCTV + Control + Power 1 RG59 + 2C18 SH + 2C18

Specifications

Brand:

Belden

Coax Construction:

COAXIAL

Coax Type:

RG 59

Color:

Special

Conductor Diameter (inches):

0.032

Conductor type:

1/0.032/20/BC, SOLID CONDUCTOR, BARE COPPER

Insulation:

FOAMED HDPE-HI-DENSITY POLYETHYLENE, FHDPE/0.145

Jacket type:

PVC, PVC/BLK/0.227, PVC-POLYVINYLCHLORIDE, PVC-1

Manufacturer:

Belden

Manufacturers item number:

502PTZ 0001000

NEC:

UL LISTED ART 800 RISER

Ohms:

Outside Diameter:

0.451

Outdoor Grade:

NO NOT OUTDOOR GRADE MATERIAL

Plenum/Riser:

RISER

RG Type:

RG59

RoHS Compliant:

YES

Shield 1 type:

BRAID ONLY

Shield 2 type:

95% AL/Polyester Unshielded

Weight per Foot:

0.08900

Manufacturer Equivalents

Anixter item:

B502PTZ

Belden item:

502PTZ 0001000

Wirexpress item:

B502PTZ
