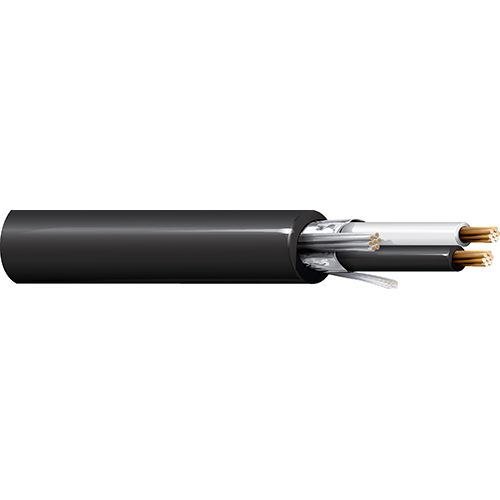

Belden 31P1801 18/1P 300V Power Limited Tray Cable BC Shielded PLTC/ITC/CMG PVC/PVC Black

This 18 AWG 1 twisted pair power limited tray cable (PLTC) is a 300V UL-rated instrumentation and control cable with a drain wire and overall Beldfoil® shield for reliable signal protection. Beldfoil® is Belden’s aluminum/polyester foil shield that provides 100% coverage to help block EMI and RFI while maintaining a lightweight, flexible cable design.

Applications

31P1801 is designed for use in industrial control, raceways, cable trays and ducts, digital control, instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control systems (DCS), programmable logic controllers (PLC), solenoids, valves, actuators and positioners.

Construction

• 18 AWG stranded bare copper conductors
• 1 twisted pair, black and white
• Tinned copper drain wire
• Polyvinyl Chloride (PVC) insulation
• Overall Beldfoil shield (100% coverage)
• Black Polyvinyl Chloride (PVC) jacket

Standards and Compliance

• Environmental Suitability: Indoor/Outdoor, Sunlight Resistance
• Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, IEEE 1202 FT4
• NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
• AWM Compliance: 2464
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
• APAC Compliance: China RoHS II (GB/T 26572-2011)

Click here for the Belden 31P1801 Technical Data Sheet.
