Belden 29520C Multi-Conductor - 600V VFD 16/3C XLPE/PVC VFD WITH 3

Belden

SKU:
29520C
$2.58/ft

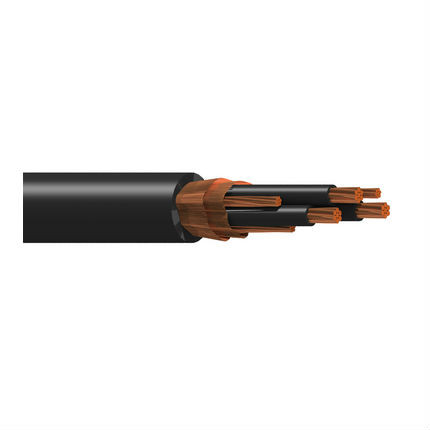

Belden 29520C Multi-Conductor - 600V VFD 16/3C XLPE/PVC VFD WITH 3 High Res
Minimum Purchase:
1 ft
3 - 16 AWG stranded (7x24) bare copper circuit conductors plus (3) - 18 AWG stranded (7x26) symmetrical bare copper ground wires, XLPE insulation, two spiral copper tape shields (100% Coverage), sun- and oil-resistant PVC jacket. View full description
$2.58/ft

Description

Multi-Conductor - 600V VFD
3 - 16 AWG stranded (7x24) bare copper circuit conductors plus (3) - 18 AWG stranded (7x26) symmetrical bare copper ground wires, XLPE insulation, two spiral copper tape shields (100% Coverage), sun- and oil-resistant PVC jacket.

Belden Basics VFD, 3 Conductor 16AWG (7x24) Bare Copper XLPE Insulation M4 Color Code + 14AWG Symmetrical Segmented Ground (3 of 18AWG) Bare Copper Stranded, Overall Dual Copper Tapes Helically Applied Shield, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B SUN RES DIR BUR Oil Resistant

Click here for Belden 29520C Technical Data Sheet.

Specifications

Brand:
Belden
AWG:
16
Color:
Black
Number of Conductors:
3
Conductor type:
16(7X24) BC 3-#18GW
CSA:
FT4
Insulation:
XPLE CIRCUITS
Jacket type:
PVC
Manufacturer:
Belden
Manufacturers item number:
29520C
Outside Diameter:
0.394
Putup:
REEL
Shield 1 type:
SPIRAL COPPER TAPE 100%
Shield 2 type:
SPIRAL COPPER TAPE 100%
Temperature:
90 DEGREES CENTIGRADE (194 F)
UL:
TC-ER
Voltage rating:
600V
Weight per Foot:
0.11300

Manufacturer Equivalents

Anixter item:
2ACD-1603-B
Belden item:
29520C 0105000
Omni Cable item:
BEL29520C
Wirexpress item:
2ACD-1603-B
