Description

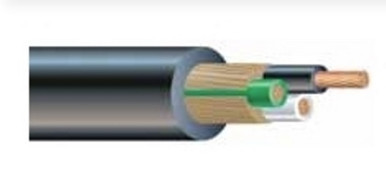

This 12 AWG multi-conductor portable cord is designed for power distribution in portable equipment and tools. It features three stranded bare copper conductors with EPDM (Ethylene Propylene Diene Monomer) insulation to provide flexibility and durability in portable applications. The overall construction includes paper tape and is enclosed in a black CPE (Chlorinated Polyethylene) jacket. The cable is rated as UL Type SO, which stands for Service Cord, Oil-Resistant, for 600-volt service.
Applications
19206 is designed for portable cordage and cordage.
Construction
- 12 AWG stranded (65x30) bare copper conductors
- 3 conductors: black, white, green
- Ethylene Propylene Diene Monomer (EPDM) insulation
- Paper tape separator
- Black Chlorinated Polyethylene (CPE) (thermoset) outer jacket
Standards and Compliance
- Environmental Suitability: Oil Resistance
- NEC / UL Compliance: Article 400, SO
- AWM Compliance: SO
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Click here for the Belden 19206 Technical Data Sheet .
