Name: Belden 1502SB Multi-Conductor - Multimedia Control Cable 2 18 AWG PP + 2FS 22 AWG FHDPE FRNHPO Black
Brand: Belden
SKU: 1502SB
Availability: OutOfStock

Description

Belden 1502SB Multi-Conductor - Multimedia Control Cable 2 18 AWG PP + 2FS 22 AWG FHDPE FRNHPO Black

Multimedia Control Cable, Rated-CMG-LS, 2-22 AWG stranded tinned copper pairs (data) with Datalene® insulation, Beldfoil® shield, drain, 1-18 AWG stranded tinned copper pair with polypropylene insulation, unshielded, LSZH jacket

Environmental Space: Indoor - Euroclass Cca

Suitable Applications: ABS Type Approved, Shipboard, Multi-Media Control, RS-422, RS--232, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, 60331-23

Click here for Belden 1502SB Technical Data Sheet.

Specifications

Brand:

Belden

AWG:

ALL COMPOSITE CABLES

Color:

Black

Number of Conductors:

2 Pairs

Conductor type:

STRANDED CONDUCTOR, TINNED COPPER

Construction:

COMPOSITE CABLES/PARTIAL SHIELDS

Insulation:

COMB-DIFFERENT INSULATIONS FOR COMPOSITES

Jacket type:

LSNH-LOW SMOKE/NO OR 'ZERO' HALOGEN

Manufacturer:

Belden

Manufacturers item number:

1502SB 0101000

NEC:

NEC CMG

Plenum/Riser:

LOW SMOKE ZERO HALOGEN (LSZH)

RoHS Compliant:

YES

Shielded/Unshielded:

YES

Shield 1 type:

FOIL SHIELDED - ALUM/MYLAR

Temperature:

75 DEGREES CENTIGRADE

Voltage rating:

300 VOLTS AC

Manufacturer Equivalents

Anixter item:

B1502SB

Belden item:

1502SB 0101000

Wirexpress item:

B1502SB

Belden 9451SB Multi-Conductor - Audio, Control and Instrumentation Shipboard Cable 2 22 AWG PP FS FRNHPO Black

Audio, control, and instrumentation cable. 1 pair of conductors with 22 AWG stranded tinned copper. Black and red PP insulated wires with a 22 AWG tinned copper drain wire. Overall Beldfoil shield and LSZH jacket. 105°C 300V Black.

$0.76/ft

Typically Ships in 1-2 Days

Belden

SKU: 8723SB

Belden 8723SB Multi-Conductor - Audio Control Interconnect Shipboard Cable 2 FS PR 22 AWG PP FRNHPO Black

Audio & Instrumentation, 22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket.

$1.32/ft

Typically Ships in 1-2 Days

Belden

SKU: 8777SB

Belden 8777SB Multi-Conductor - Audio, Control and Instrumentation Shipboard Cable 3 FSPR 22 AWG PP FRNHPO Black

22 AWG stranded (7x30) tinned copper conductors, twisted pairs, polypropylene insulation, individually Beldfoil® shielded (100% coverage), 22 AWG stranded tinned copper drain wire each pair, LSZH jacket.

$2.01/ft

Typically Ships in 1-2 Days

Belden

SKU: 1350SB

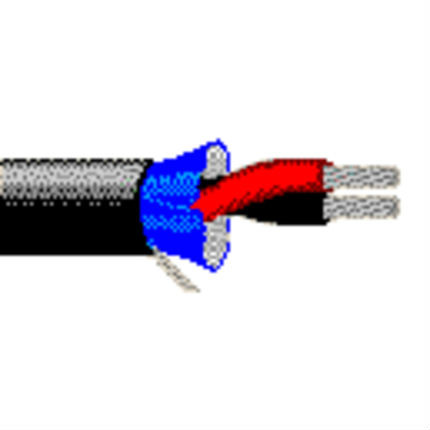

Belden 1350SB Multi-Conductor - AES/EBU Digital Audio Cable 1 FS PR 24 AWG FHDPE FRNHPO Black
