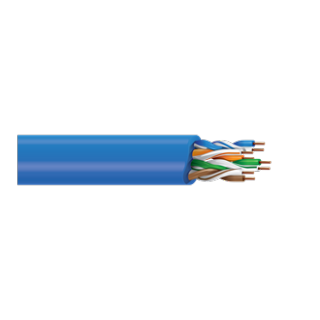

Belden 10GX12 23/4P Cat6A Cable U/UTP CMR PO/PVC 300V Blue Reel

This 10GX cable is a high-performance 625 MHz Category 6A unshielded twisted pair (U/UTP) cable, riser rated and featuring four pairs of 23 AWG solid bare copper conductors insulated with polyolefin (PO), a RoundFlex® separator, and a PVC outer jacket. It is engineered with a nominal overall diameter of 0.295 inches to balance performance with installation flexibility, supporting multi-gigabit and 10GBASE-T applications.

Belden supplies this cable in a standard crate reel put-up for controlled payout and ease of handling during installation.

Applications

10GX12 is designed for premise horizontal cabling, Ethernet up to 10GBASE-T, HDBaseT, and PoE++, PoE+, PoE.

Construction

• 23 AWG solid bare copper conductors
• 4 twisted pairs: white/blue stripe & blue, white/orange stripe & orange, white/green stripe & green, white/brown stripe & brown
• Polyolefin (PO) insulation
• Double H Cross-Web Separator (Patented RoundFlex®)
• Blue Polyvinyl chloride (PVC) outer jacket with a ripcord

Standards and Compliance

• Environmental Suitability: Riser, Indoor
• Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
• Flammability / Fire Resistance: UL 1666 Riser, FT4, IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca, CPR UKCA Class: Eca
• NEC / UL Compliance: Article 800, CMR, CMR-LP (0.5A), CL3R-LP (0.5A)
• CEC / C(UL) Compliance: CMR
• ICEA Compliance: S-116-732
• Data Category: Category 6A
• NEMA Compliance: ANSI/NEMA WC-66
• TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
• IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
• ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
• CENELEC Compliance: Segregation class according EN50174-2 = a
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)
• Plenum Number: 10GX13

Click here for the Belden 10GX12 Technical Data Sheet .
