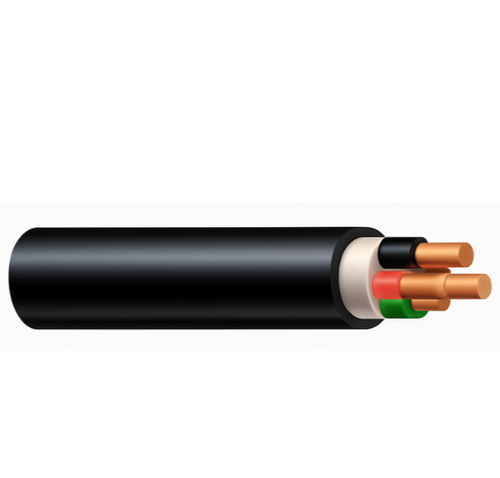

3/0 AWG 4C Type W Cable EPDM/CPE 2KV Black

This Type W Portable Power Cable is a rugged, flexible 4-conductor round cable designed for heavy-duty industrial and mining applications. It is rated for 2000 volts and utilizes EPDM insulation and a thermoset CPE jacket, making it highly resistant to severe environmental conditions.

The cable construction features rope lay stranding for maximum flex life and a bound core for superior toughness. The thermoset CPE jacket is specially formulated for resistance to oil, acids, alkalies, heat, moisture, and most chemicals. Additionally, it is sunlight-resistant, ensuring reliable indoor and outdoor performance across a wide temperature range of -40°C to +90°C.

Applications

This cable is designed for mining equipment, cranes, conveyors, and mobile equipment; withstands severe environmental conditions; excellent impact resistance; resistant to heat, acids, oils, moisture and most chemicals.

Construction

• 3/0 AWG (259 stranding) fully annealed stranded bare copper
• 4 conductors (black, white, green, red)
• EPDM (Ethylene Propylene Diene Monomer) insulation
• Thermoset CPE (Chlorinated Polyethylene) black outer jacket

Standards and Compliance

• Voltage / Temperature: UL Type W 2000V (90°C Dry, 75°C Wet)
• Mining: MSHA Approved
• Environmental Suitability: Sunlight-resistant (SUN RES), Oil Resistant
• NEC / UL Compliance: UL Type W
• ICEA S-75-381/NEMA WC-58

Spec sheet available upon request.
