Description

CONSTRUCTION

Conductor:

- Class B stranded soft drawn bare copper per ASTM B-3 & B-8

Insulation:

- Flame-retardant cross-linked polyethylene meeting the requirements for XHHW-2 per UL 44 and the requirements of ICEA S-66-524 for XLPE insulation as standard

Ground Conductor:

- Stranded bare copper per UL 1277

Assembly:

- Conductors shall be cabled in concentric layers with interstices filled with suitable fillers where necessary.
- The length of lay shall be per Table 9.1 of UL 1277
- A binder tape (when required) of synthetic material assembles the core in a tight circular configuration

Color Code Chart:

8 AWG - 750

Cond. Num.	Cond. Marking	Cond. Num.	Cond. Marking
1	"1" One	2	"2" Two
3	"3" Three	4	"4" Four

10 AWG and 12 AWG

Cond. Num.	Cond. Marking	Cond. Num.	Cond. Marking
1	Black	2	Red
3	Blue

Jacket:

- Lead-free, flame-retardant, sunlight-resistant, Polyvinyl Chloride (PVC)

Applications:

- Used as power and control cables in dry and wet locations
- Can be installed in cable trays, raceways, and open air
- Suitable for exposure to weather, direct burial and for Class 1 Division 2 hazardous locations as per NEC

Standards:

- UL Type TC 600 Volt
- UL Type XHHW-2, VW-1 Conductors
- ICEA S-95-658/NEMA WC70
- ICEA T-29-520 (210,000 BTU/hr)
- IEEE 1202 (70,000 BTU/hr) / CSA FT4
- IEEE 383 (70,000 BTU/hr)
- UL Subject 1277 (70,000 BTU/hr)
- Meets cold bend test of -25*C per UL 1277 Section 15
- Type TC-ER on constructions greater than 2 conductors

Specifications

Conductor Size:

2/0 AWG

Color:

Black

Conductor Count:

Conductor Type:

Stranded

CSA:

YES

Recommended Fitting:

TCF150165A

Insulation:

XLPE XHHW-2 VW-1

Jacket Material:

PVC - Polyvinyl Chloride

NEC:

YES

Outside Diameter:

1.45 in

Shield:

Unshielded

Temperature:

90C (194F)

UL:

YES

Voltage rating:

600V

Weight per Foot:

0.254 lb

Conductor Material:

Bare Copper

Manufacturer Equivalents

General Cable item:

339560

Lake Cable item:

VGX2/04/M4

Omni Cable item:

A62/004

Southwire item:

556985

Superior Essex item:

E3BFA-2A1B04CE00

Houston Wire item:

HW15720104

1/0 AWG 4 conductors XLPE XPTC Tray Cable with Ground

SKU: 107024

4 AWG 4 conductors XLPE XPTC Tray Cable with Ground

SKU: 107026

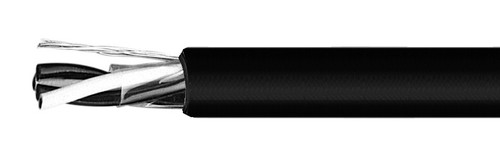

6 AWG 4 conductors XLPE XPTC Tray Cable with Ground
