16/16PR PLTC SPOS 105C 300V PVC Black

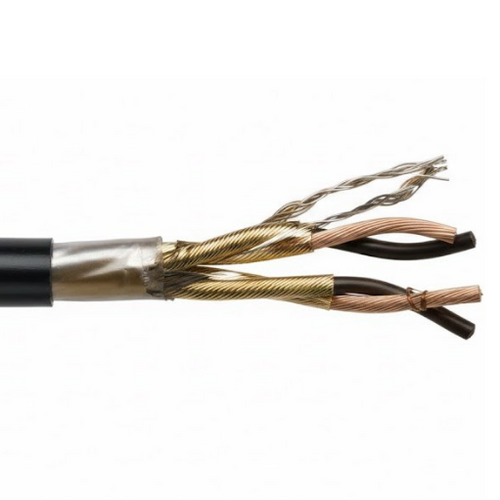

This 16 gauge 16 twisted pair conductor PLTC or Power Limited Tray Cable is an instrumentation tray cable that is rated to 300 volts compared to tray cables rated to 600 volts. This cable is made up of concentric stranded bare copper conductors and rated for 105℃. It has a PVC insulation and SPOS or Shielded Pairs Overall Shield that is made of an aluminum mylar tape with a stranded tinned copper drain and a PVC jacket. SPOS shielding helps with electrical isolation and noise reduction.

PLTC cables are UL approved for sunlight resistant, direct burial applications, and Class I Division II hazardous locations. They can be used in many applications including intercom systems, burglar alarms, power limited circuits, industrial control systems, and substations.

Applications:

• Instrumentation cable inside or outside in control applications.
• Installations in trays, troughs, channels, conduit, wireways, and for aerial use when supported by a messenger.
• Cable is suitable for use in Class I Division II hazardous locations.
• Cable is UL approved for sunlight resistant and direct burial applications.

Standards:

• UL Type PLTC and CL3 per UL standard 13
• Type ITC per UL standard 2250
• Meets CSA standard C22.2 #239 C(UL) CIC 300V 90℃
• IEEE 1202 available upon request
• RoHS compliant

Construction:

Conductor:

16 AWG stranded annealed bare copper

16 pair conductors: black, white, and numbered

Drain Wire:

Stranded tinned copper

Shield:

Individual and overall aluminum/polyester foil

Insulation:

PVC - Polyvinyl Chloride

Jacket:

PVC - Polyvinyl Chloride, Black

Spec sheet available here.
