Description

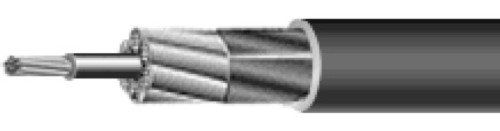

This DuPont constructed 14 AWG 4 conductor vinyl nylon tray cable (VNTC), also known as PVC/Nylon, is a general purpose 600 volt non shielded control cable designed for power, control and lighting circuits. It is suitable for a broad range of commercial and industrial uses.

The Exposed Run (ER) rating on this cable means it meets crush and impact testing requirements, and is therefore tough enough to run outside a cable tray without additional protection, unlike standard tray cables which must be installed inside a conduit, raceway or other protection.

Applications:

In free air, raceways, and direct burial
In wet or dry locations
Approved for direct burial
Class 1, Division 2 industrial hazardous locations per NEC

Standards:

UL 83 NEC Type THHN/THWN conductors
Rated for UV/sunlight resistance
* UL 1277 Type TC-ER for 3 or more conductors

Construction:

Conductor:

Fully annealed stranded bare copper per ASTM B3

Class B stranding per ASTM B8

ICEA color code Method 4: black with numbered conductors

Insulation:

Flame-retardant PVC with clear polyamide (nylon)

Jacket:

Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC) per UL standard 1277 with ripcord

Spec sheet available here.

Specifications

Conductor Size:

14 AWG

Color:

Black

Conductor Count:

Conductor Type:

Stranded

CSA:

YES

Insulation:

PVC/Nylon

Jacket Material:

PVC - Polyvinyl Chloride

NEC:

YES

Outside Diameter:

0.373 in

Shield:

Unshielded

Temperature:

90C (194F)

UL:

YES

Voltage rating:

600V

Weight per Foot:

0.093 lb

Conductor Material:

Bare Copper

Manufacturer Equivalents

Belden item:

58082A

General Cable item:

242480

Lake Cable item:

V144/M4

Nexans item:

631192

Omni Cable item:

A141404

Superior Essex item:

E2BEA-141B04CE00

Tappan item:

V60011
